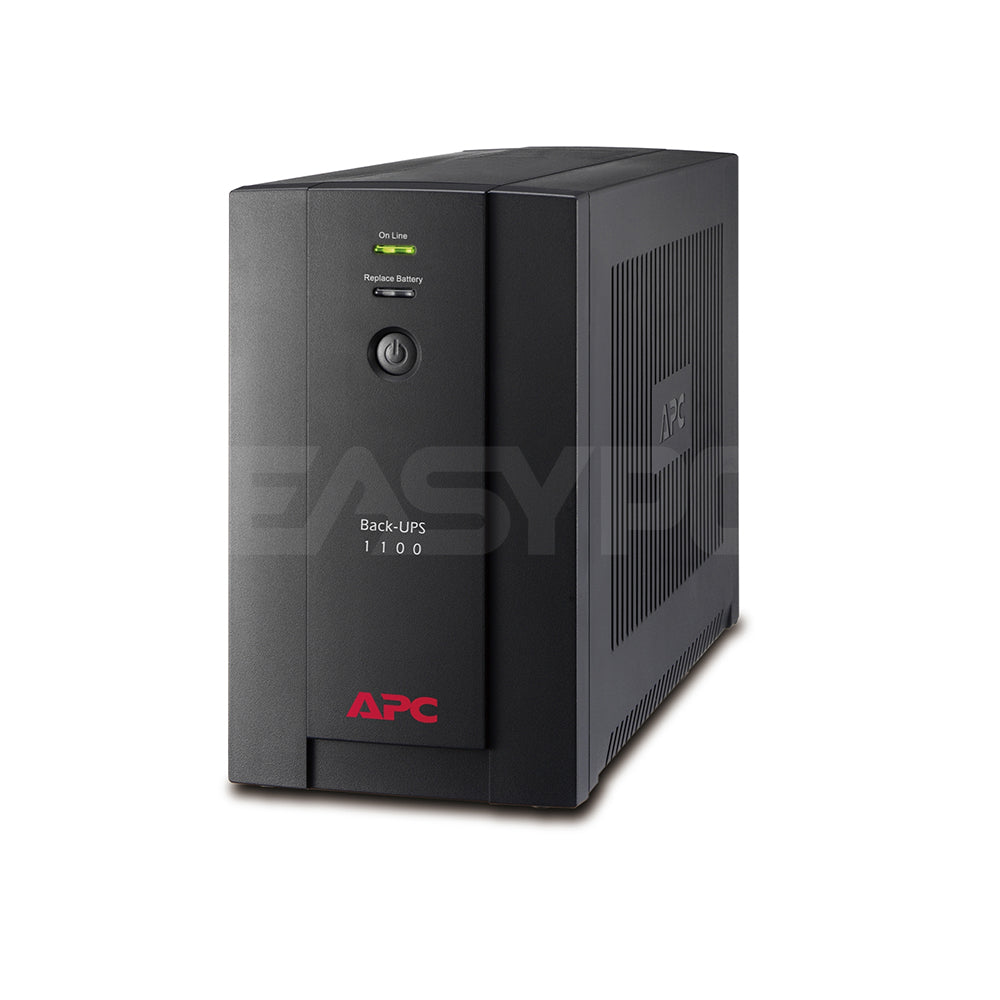

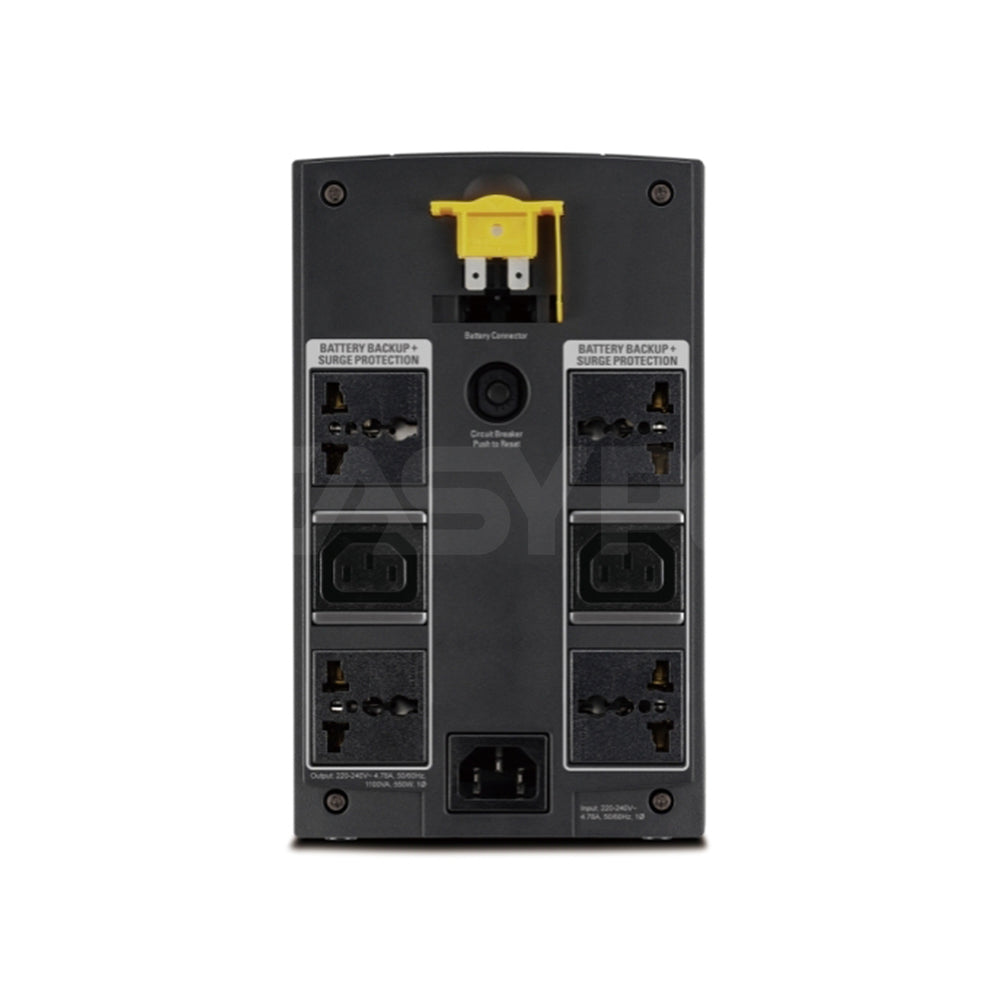

APC Back UPS BX1100LIMS 550Watts 1100va with AVR Universal and IEC Sockets

Description

Output

Max Configurable Power (Watts)

550Watts / 1.1kVA

Output Frequency (sync to mains)

50/60 Hz +/-1 Hz

Output Frequency (not synced)

50/60 Hz +/-1 Hz

Topology

Line Interactive

Waveform type

Stepped approximation to a sinewave

Transfer Time

4ms typical : 6ms maximum

Input

Input frequency

50/60 Hz +/- 3 Hz (auto sensing)

Input voltage range for main operations

150 – 280 V

Number of Power Cords

1

Type of Input Protection Required

3-pole breaker

Input Power Factor at Full Load

0.5

Batteries & Runtime

Battery type

Maintenance-free sealed Lead-Acid battery with suspended electrolyte : leakproof

Included Battery Modules

1

Typical recharge time

6hour(s)

Replacement Battery

RBC17

Expected Battery Life (years)

2 – 4

Battery Charge Power (Watts)

16Watts

Battery Volt-Amp-Hour Capacity

96

Runtime

View Runtime Graph

View Runtime Chart

Efficiency

View Efficiency Graph

Communications & Management

Control panel

LED status display with load and battery bar-graphs and On Line : On Battery : Replace Battery : and Overload Indicators

Audible Alarm

Alarm when on battery : distinctive low battery alarm : overload continuous tone alarm

Surge Protection and Filtering

Surge energy rating

273Joules

Physical

Maximum Height

215MM, 21.5CM

Maximum Width

130MM, 13.0CM

Maximum Depth

336MM, 33.6CM

Net Weight

9.2KG

Shipping weight

10.6KG

Shipping Height

295MM, 29.5CM

Shipping Width

245MM, 24.5CM

Shipping Depth

440MM, 44.0CM

Color

Black

Environmental

Operating Temperature

0 – 40 C

Operating Relative Humidity

0 – 95 %

Operating Elevation

0-3000meters

Storage Temperature

-15 – 40 C

Storage Relative Humidity

0 – 95 %

Storage Elevation

0-9000meters

Audible noise at 1 meter from surface of unit

45.0dBA

Conformance

Approvals

CE, WEEE

Standard warranty

2 years repair or replace

Sustainable Offer Status

RoHS

Compliant

REACH

REACH: Contains SVHCs
