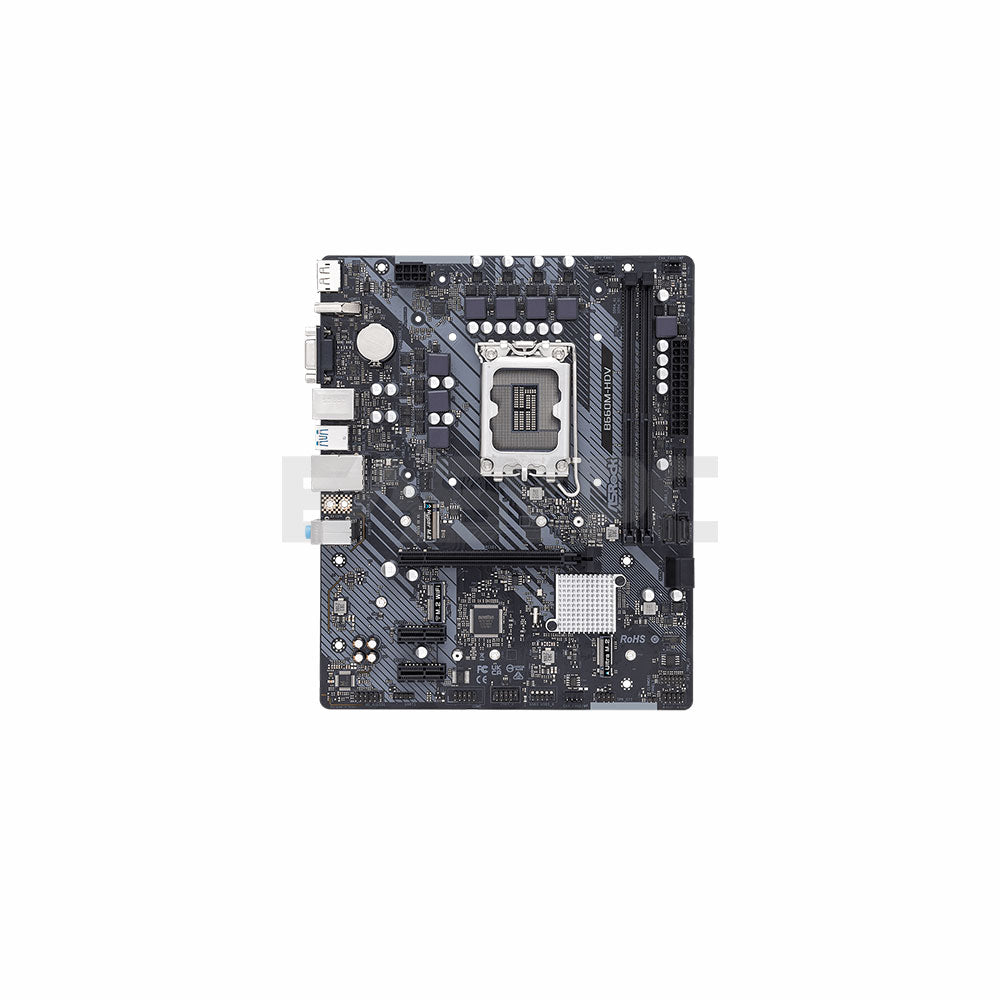

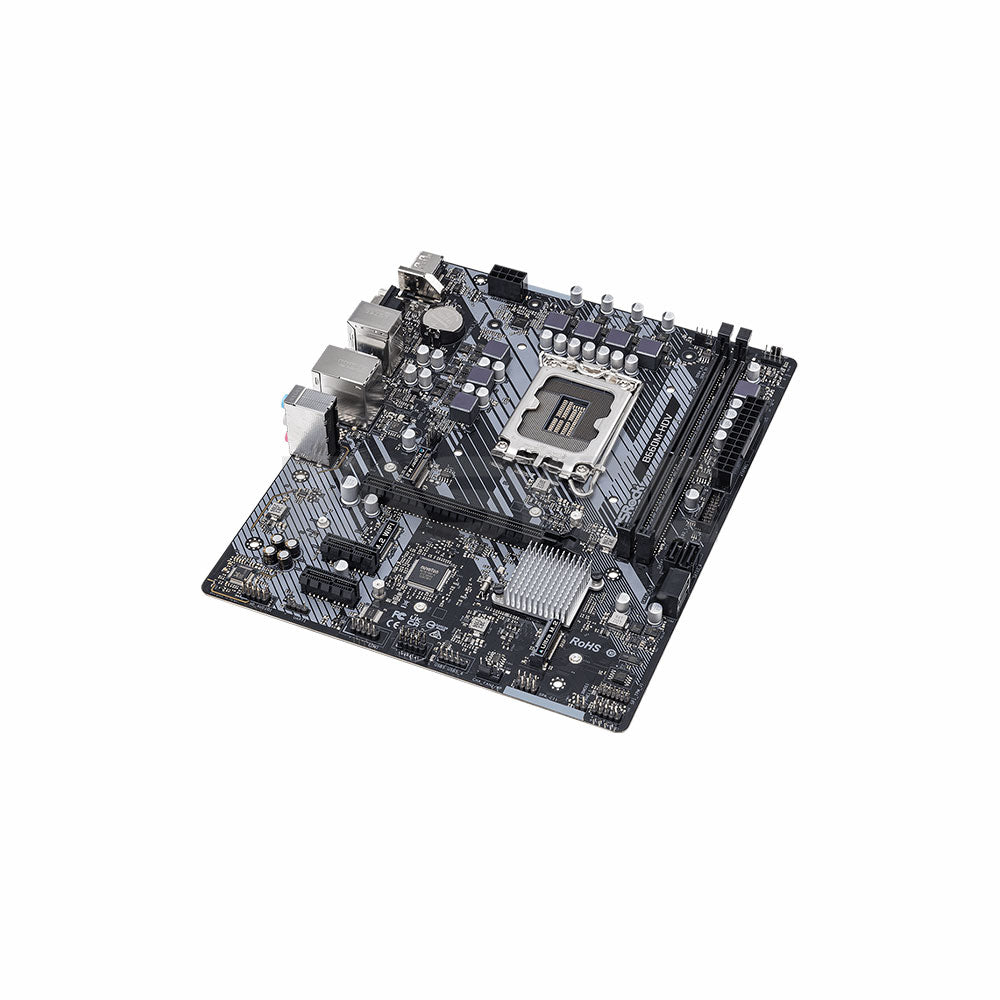

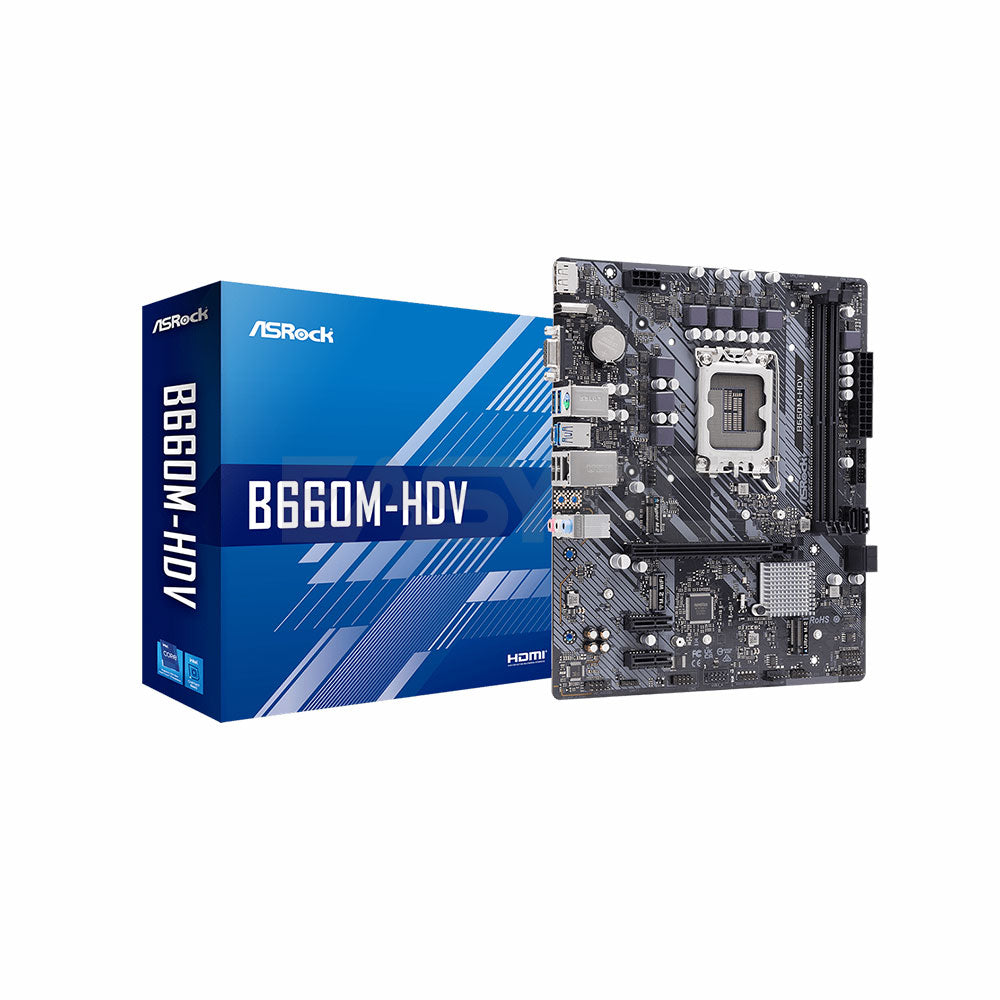

Asrock B660M-HDV Socket LGA 1700 Ddr4 Motherboard

Description

Asrock B660M-HDV High Speed M.2 Solution M.2 (KEY E) For WiFi 3 Graphics Outputs Socket LGA 1700 Ddr4 Motherboard

Product Description

Asrock B660M-HDV: Elevate your system with LGA 1700 socket and DDR4 support. Experience reliability and performance in a compact design. This motherboard delivers essential features for a seamless computing experience.

Product Specifications

• Brand: Asrock
• Model: B660M-HDV
• CPU
• – Supports 12th Gen Intel® Core™ Processors (LGA1700)
• – Digi Power design
• – 6 Power Phase design
• – Supports Intel® Hybrid Technology
• – Supports Intel® Turbo Boost Max 3.0 Technology
• Chipset: Intel® B660
• Form Factor
• – Micro ATX Form Factor: 9.6-in x 7.9-in, 24.4 cm x 20.1 cm
• – Solid Capacitor design
• OS: Microsoft® Windows® 10 64-bit / 11 64-bit
• Unique Feature
• ASRock Super Alloy
• – Premium Power Choke
• – Sapphire Black PCB
• – High Density Glass Fabric PCB
• ASRock Hyper M.2 (PCIe Gen4x4)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop
• Memory
• – Dual Channel DDR4 Memory Technology
• – 2 x DDR4 DIMM Slots
• – Supports DDR4 non-ECC, un-buffered memory up to 5066+(OC)*
• – Supports ECC UDIMM memory modules (operate in non-ECC mode)
• – Max. capacity of system memory: 64GB
• – Supports Intel® Extreme Memory Profile (XMP) 2.0
• BIOS
• – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• – ACPI 6.0 Compliant wake up events
• – SMBIOS 2.7 Support
• – CPU Core/Cache, CPU GT, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +1.05V PCH Voltage Multi-adjustment
• Graphics
• – Intel® Xe Graphics Architecture (Gen 12)
• – Three graphics output options: D-Sub, HDMI and DisplayPort 1.4
• – Supports HDMI 2.1 TMDS Compatible with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
• – Supports DisplayPort 1.4 with DSC (compressed) max. resolution up to 8K (7680×4320) @ 60Hz / 5K (5120×3200) @ 120Hz
• – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
• – Supports HDCP 2.3 with HDMI 2.1 TMDS Compatible and DisplayPort 1.4 Ports
• – 7.1 CH HD Audio (Realtek ALC897/887 Audio Codec)
• – Supports Surge Protection
• LAN
• – Gigabit LAN 10/100/1000 Mb/s
• – Giga PHY Intel® I219V
• – Supports Wake-On-LAN
• – Supports Lightning/ESD Protection
• – Supports Energy Efficient Ethernet 802.3az
• – Supports UEFI PXE
• Slots
• CPU:
• – 1 x PCIe 4.0 x16 Slot (PCIE1), supports x16 mode*
• Chipset:
• – 2 x PCIe 3.0 x1 Slots (PCIE2 and PCIE3)*
• – 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
• Storage
• CPU:
• – 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
• Chipset:
• – 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
• – 4 x SATA3 6.0 Gb/s Connectors**
• RAID: Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
• Connector
• – 1 x COM Port Header
• – 1 x SPI TPM Header
• – 1 x Chassis Intrusion and Speaker Header
• – 1 x CPU Fan Connector (4-pin)*
• – 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)**
• – 2 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
• – 1 x 24 pin ATX Power Connector
• – 1 x 8 pin 12V Power Connector
• – 1 x Front Panel Audio Connector
• – 2 x USB 2.0 Headers (Support 3 USB 2.0 ports) (Supports ESD Protection)
• – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

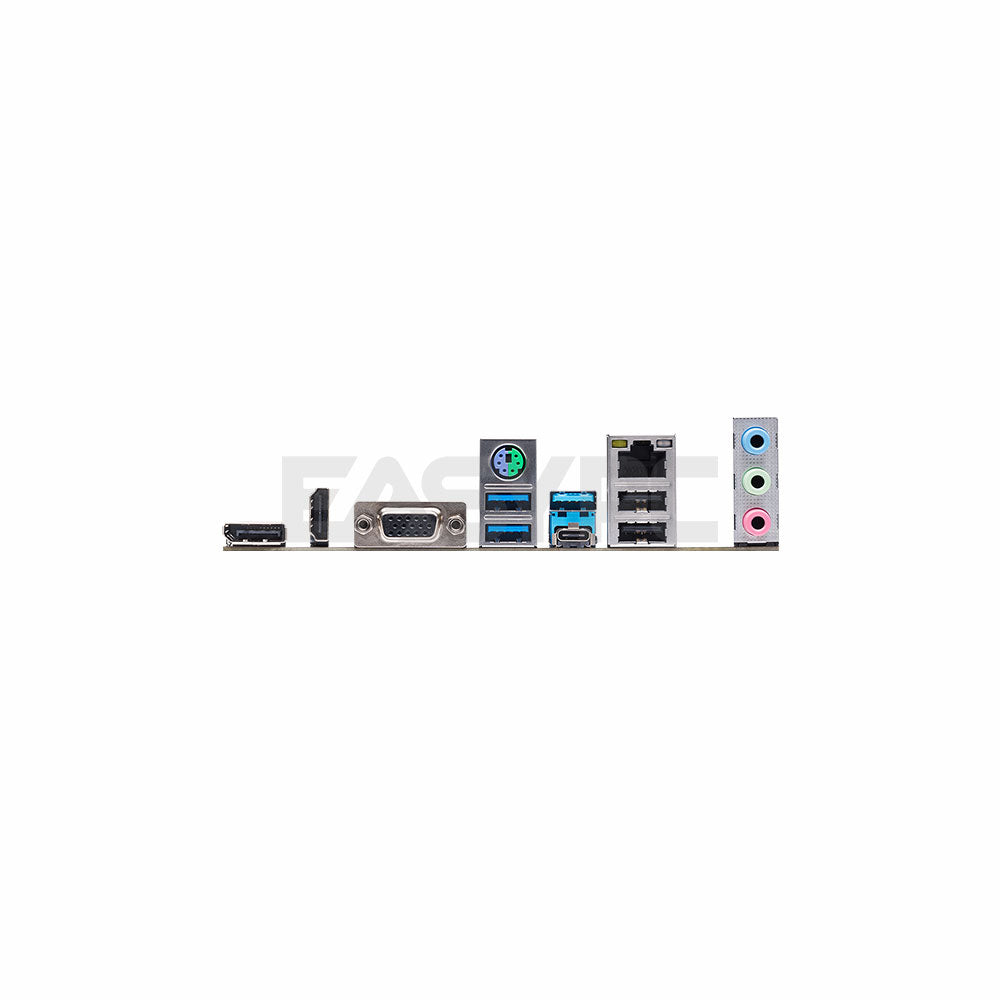

• Rear Panel I/O
• – 2 x Antenna Mounting Points
• – 1 x PS/2 Mouse/Keyboard Port
• – 1 x D-Sub Port
• – 1 x HDMI Port
• – 1 x DisplayPort 1.4
• – 3 x USB 3.2 Gen1 Type-A Ports (Supports ESD Protection)
• – 1 x USB 3.2 Gen1 Type-C Port (Supports ESD Protection)
• – 2 x USB 2.0 Ports (Supports ESD Protection)
• – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
• Software
• – ASRock Motherboard Utility (A-Tuning)
• – ASRock XFast LAN
• UEFI
• – ASRock EZ Mode
• – ASRock Full HD UEFI
• – ASRock My Favorites in UEFI
• – ASRock Instant Flash
• – ASRock Internet Flash
• – ASRock Easy RAID Installer
• Support CD: Drivers, Utilities, AntiVirus Software (Trial Version)
• Hardware Monitor
• – Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans
• – Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans
• – CASE OPEN detection
• – Voltage monitoring: CPU Vcore, +1.05 PCH, DRAM, VCCIN AUX, +1.05V PROC, +0.82V PCH, +12V, +5V, +3.3V
• Features:
• Supports 12th Gen Intel® Core™ Processors (LGA1700)
• 6 Phase Power Design
• Supports DDR4 5066MHz (OC)
• 1 PCIe 4.0 x16, 2 PCIe 3.0 x1
• 1 M.2 Key-E for WiFi
• Graphics Output Options: HDMI, DisplayPort, D-Sub
• Realtek ALC887/897 7.1 CH HD Audio Codec, Nahimic Audio
• 4 SATA3
• 1 Hyper M.2 (PCIe Gen4 x4)
• 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 6 USB 3.2 Gen1 (3 Rear, 1 Rear Type-C, 2 Front)
• 5 USB 2.0 (2 Rear, 3 Front)
• Intel® Gigabit LAN
