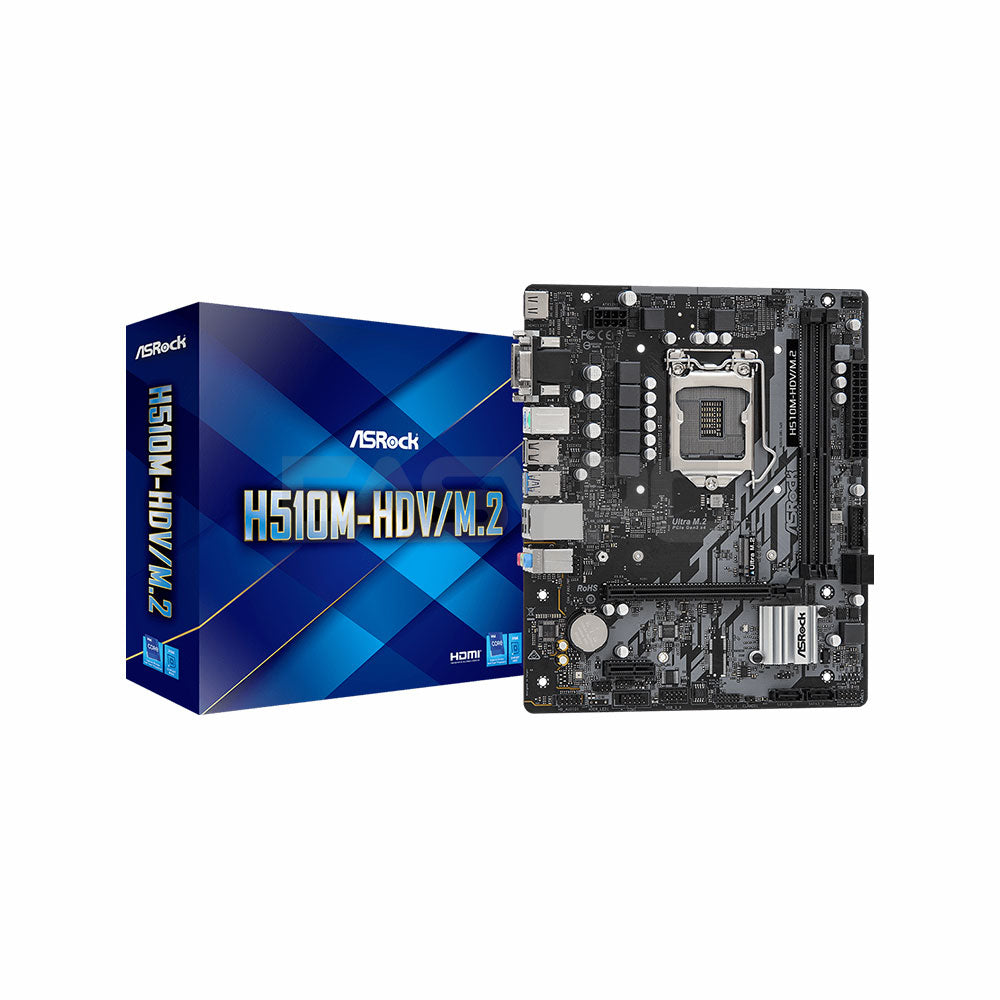

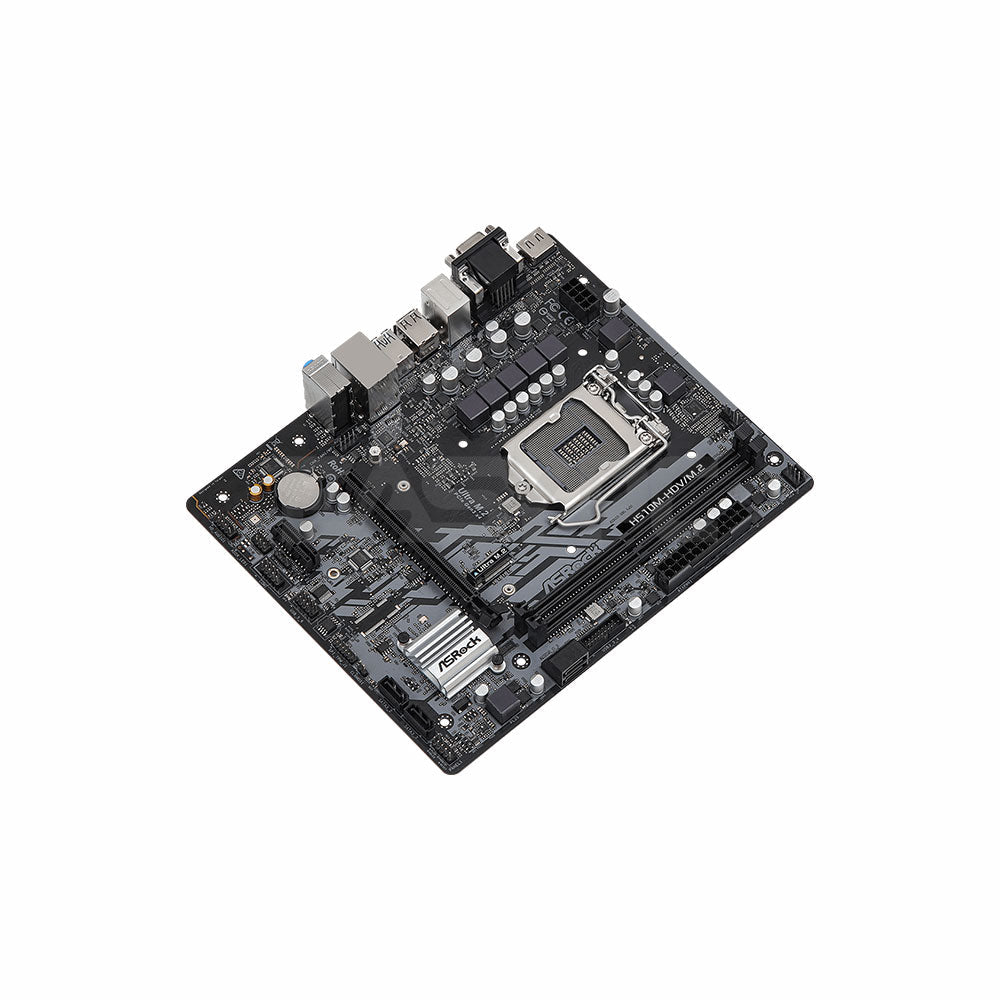

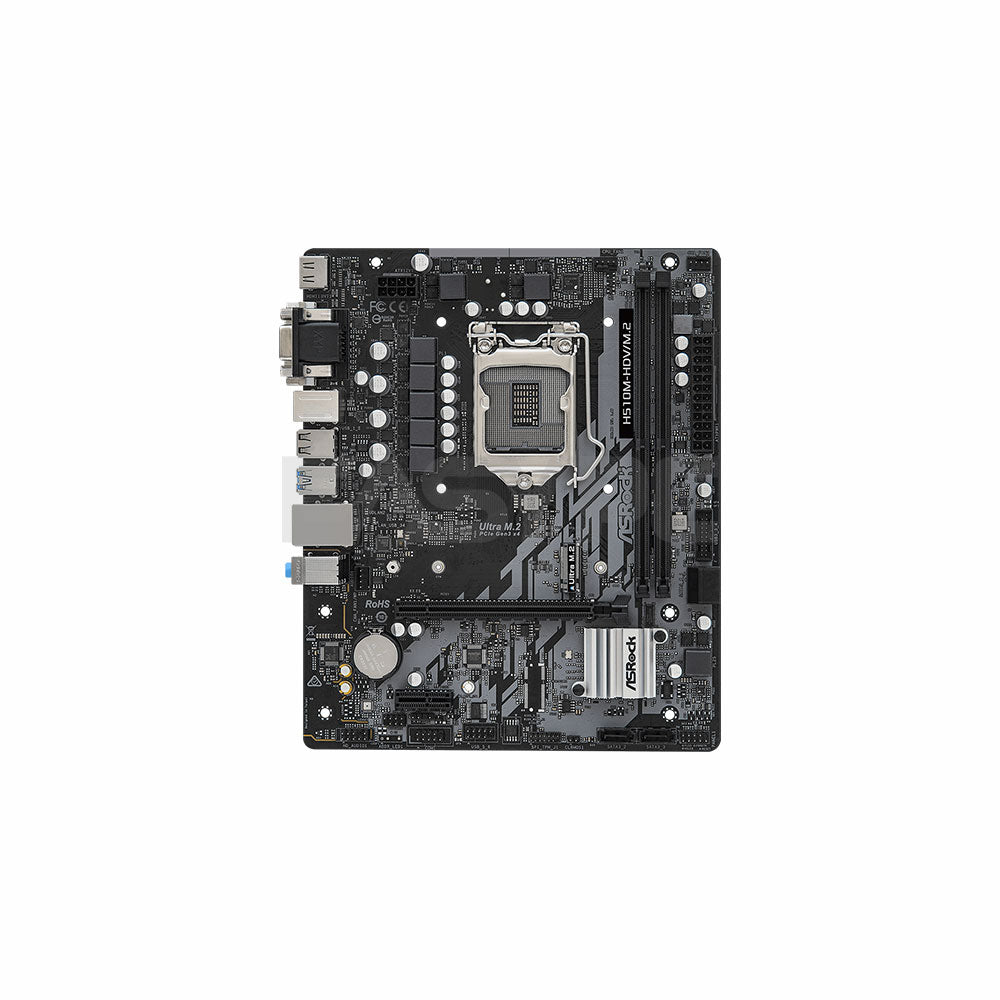

Asrock H510M-HDV/M.2 Socket LGA 1200 Ddr4 Gaming Motherboard

Description

Asrock H510M-HDV/M.2 Socket LGA 1200 Ddr4 Gaming Motherboard

Product Specifications

• Brand: Asrock
• Model: H510M-HDV/M.2
• Form Factor: Micro ATX Form Factor: 8.9-in x 7.4-in, 22.6 cm x 18.8 cm; Solid Capacitor design
• OS: Microsoft® Windows® 10 64-bit / 11 64-bit
• Chipset: Intel® H510
• CPU
• – Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors (LGA1200)
• – 5 Power Phase design
• – Supports Intel® Turbo Boost Max 3.0 Technology
• Memory
• – Dual Channel DDR4 Memory Technology
• – 2 x DDR4 DIMM Slots
• – Supports DDR4 3200(OC) / 2933 / 2800 / 2666 / 2400 / 2133 non-ECC, un-buffered memory*
• – Supports ECC UDIMM memory modules (operate in non-ECC mode)
• – Max. capacity of system memory: 64GB**
• – Supports Intel® Extreme Memory Profile (XMP) 2.0
• Unique Feature
• ASRock Super Alloy
• – Premium 50A Power Choke
• – Sapphire Black PCB
• – High Density Glass Fabric PCB
• ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
• ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
• ASRock Live Update & APP Shop
• BIOS
• – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
• – ACPI 6.0 Compliant wake up events
• – SMBIOS 2.7 Support
• – CPU Core/Cache, CPU GT, VCCSA, DRAM, VCCIO, VCCST, VCCIN AUX Voltage Multi-adjustment
• Graphics
• – 11th Gen Intel® Core™ Processors support Intel® Xe Graphics Architecture (Gen 12). 10th Gen Intel® Core™ Processors support Gen 9 Graphics
• – Three graphics output options: D-Sub, DVI-D and HDMI**
• – Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz with 11th Gen Intel® Core™ Processors
• – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz with 10th Gen Intel® Core™ Processors
• – Supports DVI-D with max. resolution up to 1920×1200 @ 60Hz
• – Supports D-Sub with max. resolution up to 1920×1200 @ 60Hz
• – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
• – Supports HDCP 2.2 with DVI-D and HDMI Ports (HDCP 2.3 ready with 11th Gen Intel® Core™ Processors)
• Audio
• – 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
• – Supports Surge Protection
• LAN
• – Gigabit LAN 10/100/1000 Mb/s
• – Giga PHY Intel® I219V
• – Supports Wake-On-LAN
• – Supports Lightning/ESD Protection
• – Supports Energy Efficient Ethernet 802.3az
• – Supports PXE
• Slots
• 11th Gen Intel® Core™ Processors
• – 1 x PCI Express 4.0 x16 Slot*
• 10th Gen Intel® Core™ Processors
• – 1 x PCI Express 3.0 x16 Slot*
• – 1 x PCI Express 3.0 x1 Slot
• Storage
• – 4 x SATA3 6.0 Gb/s Connectors, support Intel® Rapid Storage Technology 18, NCQ, AHCI and Hot Plug*
• – 1 x Ultra M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**
• Connector
• – 1 x COM Port Header
• – 1 x SPI TPM Header
• – 1 x Chassis Intrusion and Speaker Header
• – 1 x CPU Fan Connector (4-pin)*
• – 1 x Chassis Fan Connector (4-pin)**
• – 1 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)***
• – 1 x 24 pin ATX Power Connector
• – 1 x 8 pin 12V Power Connector
• – 1 x Front Panel Audio Connector
• – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
• – 1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)

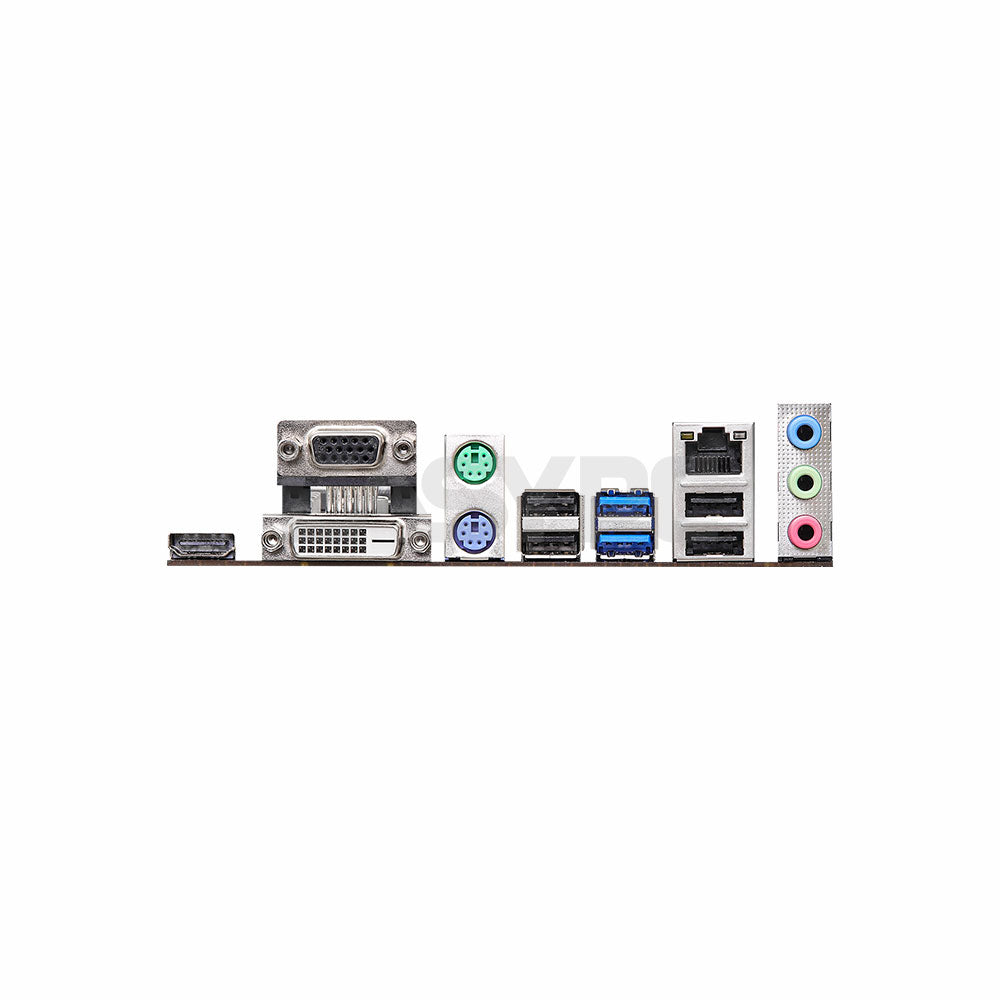

• Rear Panel I/O
• – 1 x PS/2 Keyboard Port
• – 1 x PS/2 Mouse Port
• – 1 x D-Sub Port
• – 1 x DVI-D Port
• – 1 x HDMI Port
• – 4 x USB 2.0 Ports (Supports ESD Protection)
• – 2 x USB 3.2 Gen1 Ports (Supports ESD Protection)
• – 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
• – HD Audio Jacks: Line in / Front Speaker / Microphone
• Software and UEFI
• Software
• – ASRock Motherboard Utility (A-Tuning)
• – ASRock XFast LAN
• UEFI
• – ASRock EZ Mode
• – ASRock Full HD UEFI
• – ASRock My Favorites in UEFI
• – ASRock Instant Flash
• – ASRock Internet Flash
• Support CD: Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
• Hardware Monitor
• – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
• – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
• – Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
• – CASE OPEN detection
• – Voltage monitoring: CPU Vcore, +12V, +5V, +3.3V
• Features:
• Supports 10th Gen Intel® Core™ Processors and 11th Gen Intel® Core™ Processors
• Supports DDR4 3200MHz (OC)
• 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x1
• Graphics Output Options: HDMI, DVI-D, D-Sub
• 1 CH HD Audio (Realtek ALC897 Audio Codec)
• 4 SATA3, 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 4 x USB 3.2 Gen1 (2 x Rear, 2 x Front)
• 6 x USB 2.0 (4 x Rear, 2 x Front)
• Intel® Gigabit LAN
