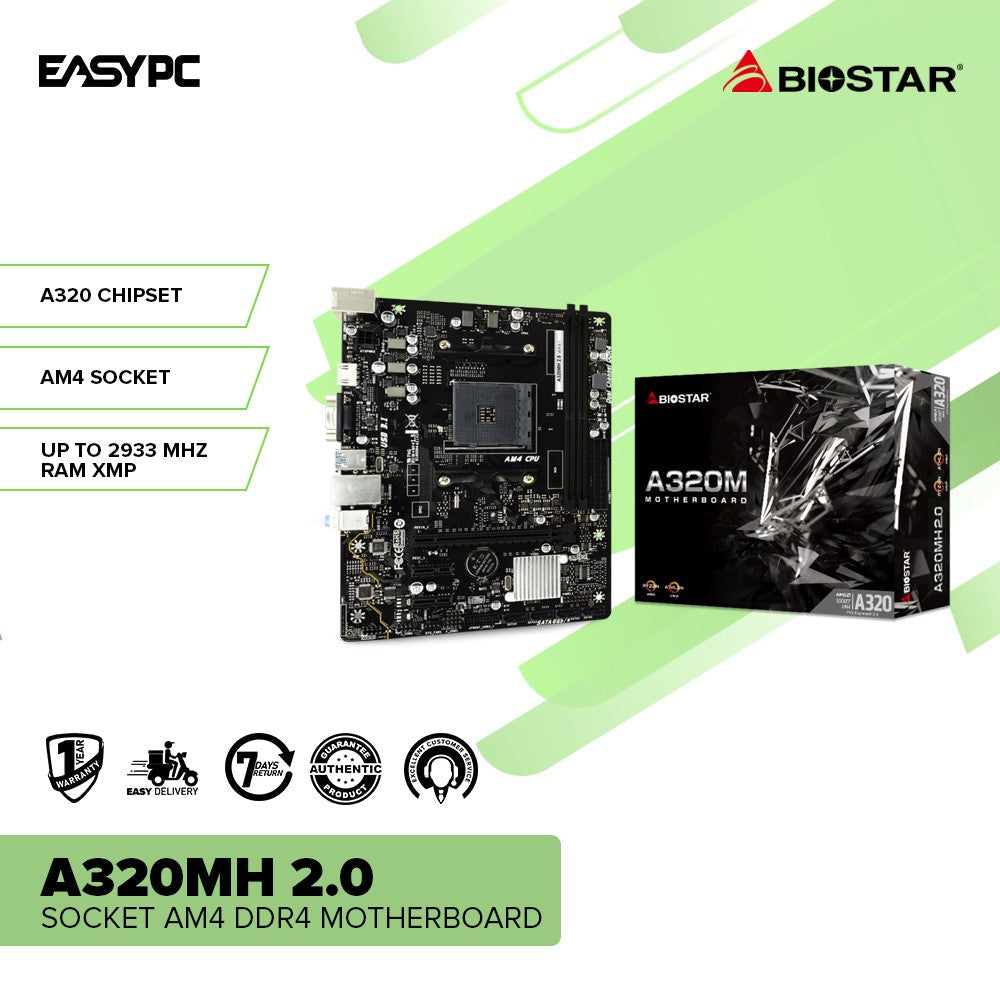

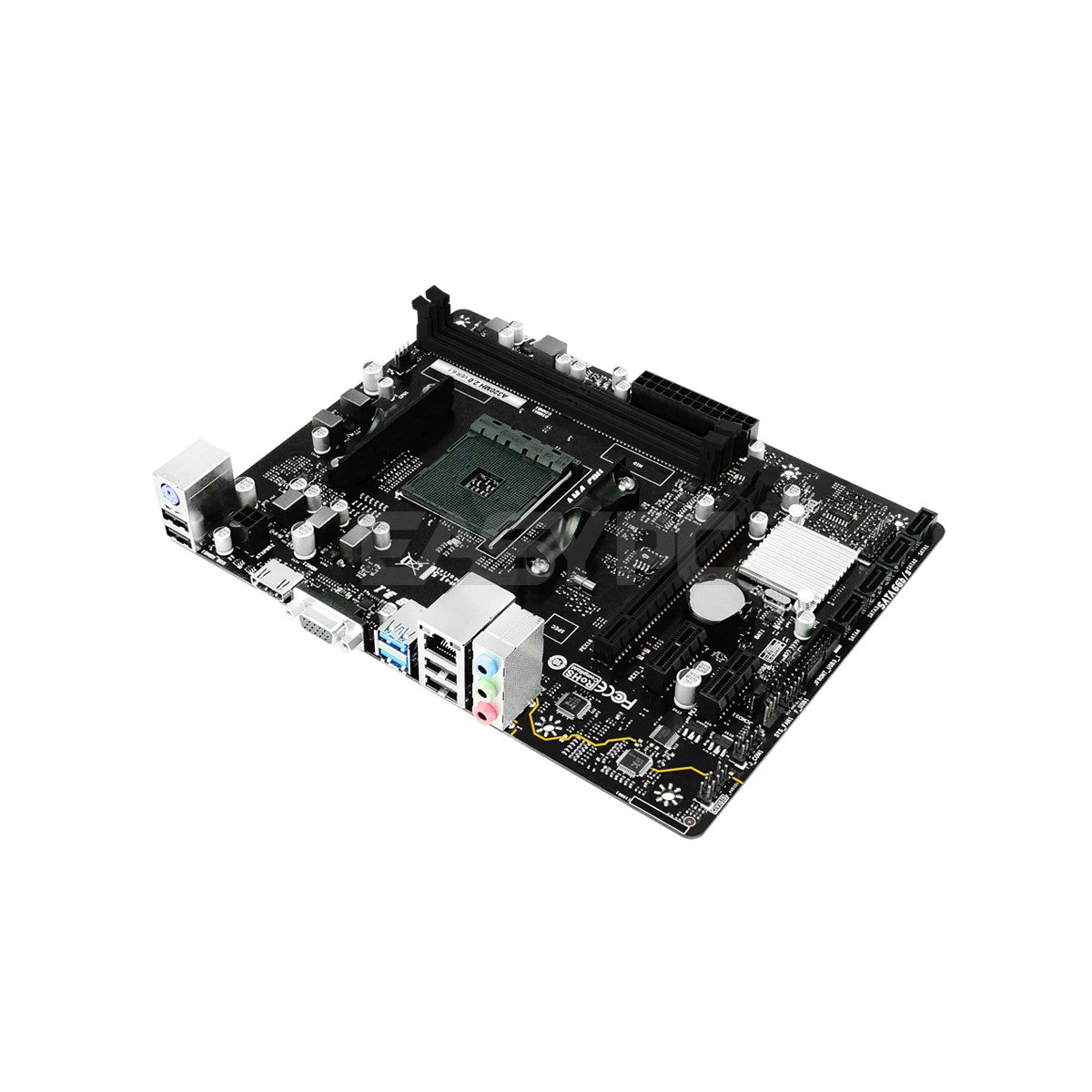

Biostar A320MH 2.0 Socket Am4 Ddr4 Motherboard

Description

Biostar A320MH 2.0 Socket Am4 Ddr4 Motherboard

Product Description

The Biostar A320MH 2.0 AM4 DDR4 Motherboard offers budget-friendly reliability. With AM4 socket support and DDR4 compatibility, it’s perfect for basic computing needs. Upgrade for a dependable, efficient, and straightforward build experience. Ideal for users seeking an affordable and functional motherboard.

 Product Specification

• Brand: Biostar
• Model: A320MH 2.0
• Chipset: AMD A320
• CPU SUPPORT: Socket AM4 supports AMD A-series APU, Ryzen APU / Ryzen CPU
• MEMORY:
• Supports Dual Channel DDR4 1866/2133/2400/2667/2933
• 2 x DDR4 DIMM Memory Slot, Max. Supports up to 32 GB Memory
• Each DIMM supports non-ECC 8/16 GB DDR4 module
• STORAGE: 4 x SATA III Connectors (6Gb/s); Supports AHCI & RAID 0, 1, 10
• LAN: Realtek RTL 8111H; 10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability
• AUDIO CODEC: ALC897; 7.1 Channels, High Definition Audio
• USB:
• 4 x USB 3.2 (Gen1) ports (2 on rear I/Os and 2 via internal headers)
• 8 x USB 2.0 ports (4 on rear I/Os and 4 via internal headers)

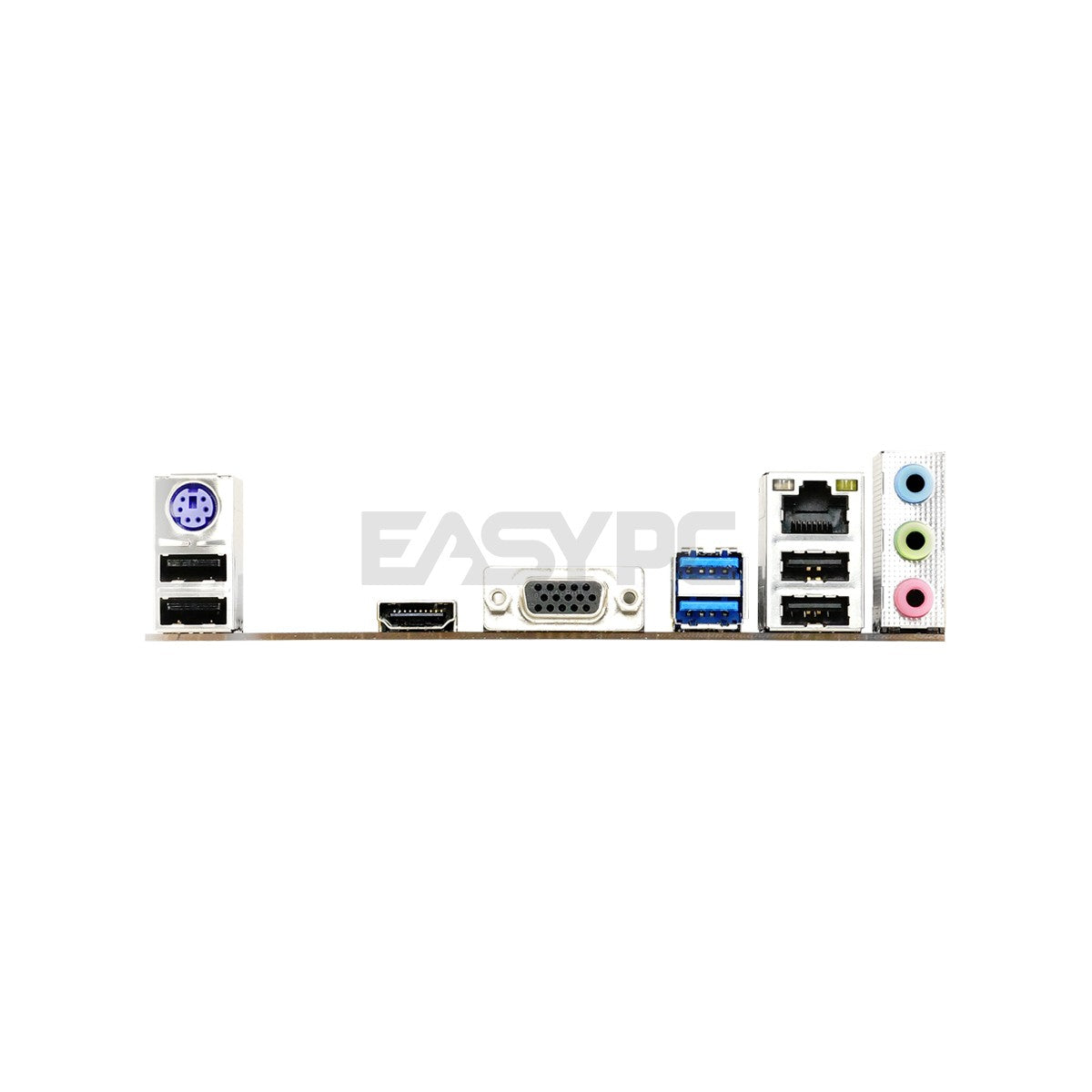

• REAR I/O
• 1 x PS/2 Keyboard/ Mouse
• 1 x VGA Port
• 1 x HDMI Port
• 1 x LAN port
• 2 x USB 3.2 (Gen1) Ports
• 4 x USB 2.0 Ports
• 3 x Audio Jack
• INTERNAL I/O
• 4 x SATA III 6.0Gb/s Connectors
• 2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
• 1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
• 1 x 4-Pin Power Connector
• 1 x 24-Pin Power Connector
• 1 x CPU Fan Connector
• 1 x System Fan Connector
• 1 x Front Panel Header
• 1 x Front Audio Header
• 1 x Clear CMOS Header
• 1 x COM Serial Header
• H/W MONITORING
• CPU / System Temperature Monitoring
• CPU / System Fan Monitoring
• Smart / Manual CPU Fan Control
• System Voltage Monitoring
• DIMENSION: Micro ATX Form Factor Dimension: 17.4cm x 22.6cm ( W x L )
• OS SUPPORT: Supports Windows 7(64bit) / 10(64bit) / 11(64bit); ※BIOSTAR reserves the right to add or remove support for any OS with or without notice
• BUNDLE SOFTWARE: BullGuard
• FEATURES
• Supports 100% Solid capacitor
• BIO-FLASHER
• Supports BIOS Online Update
• Supports AMD Ryzen CPU / APU
• AMD A320 single chip architecture
• Supports 2-DIMM DDR4-2933/2667/2400/2133/1866 up to 32G maximum capacity
• Supports HDMI
• Supports USB 3.2 Gen1
