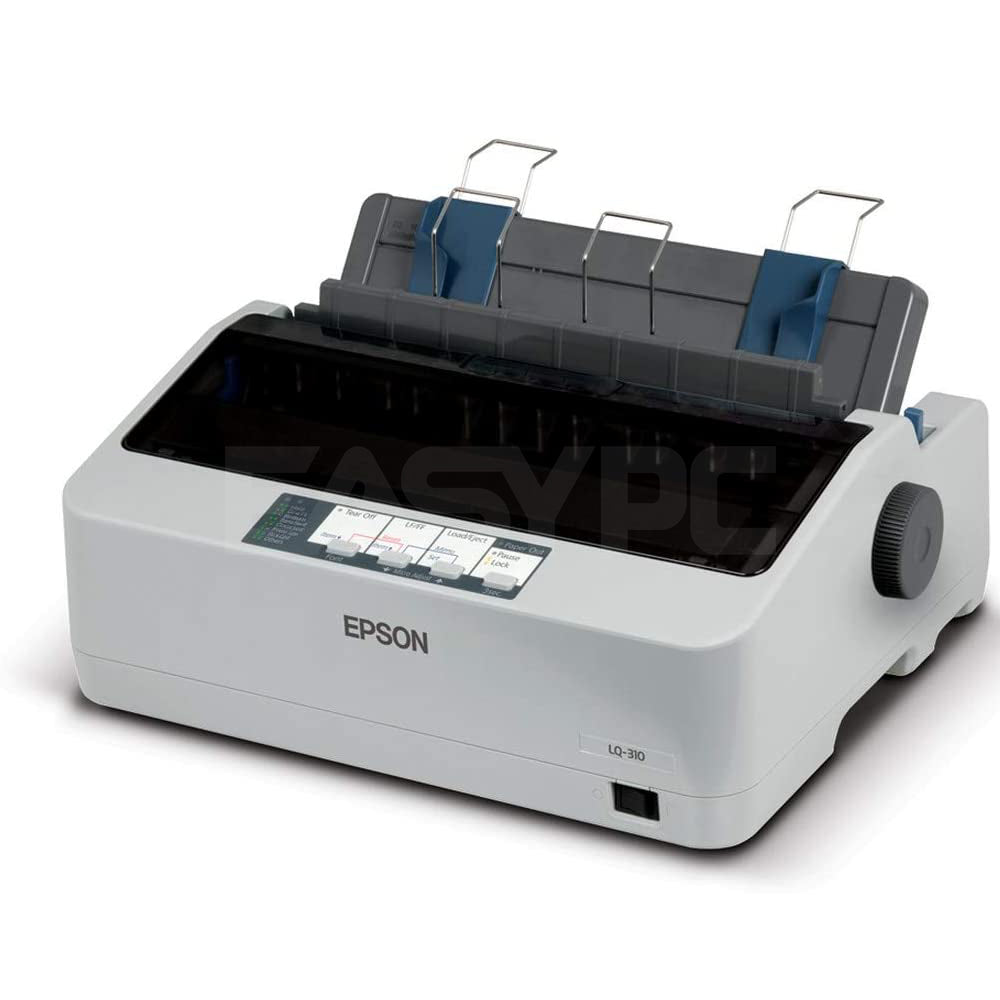

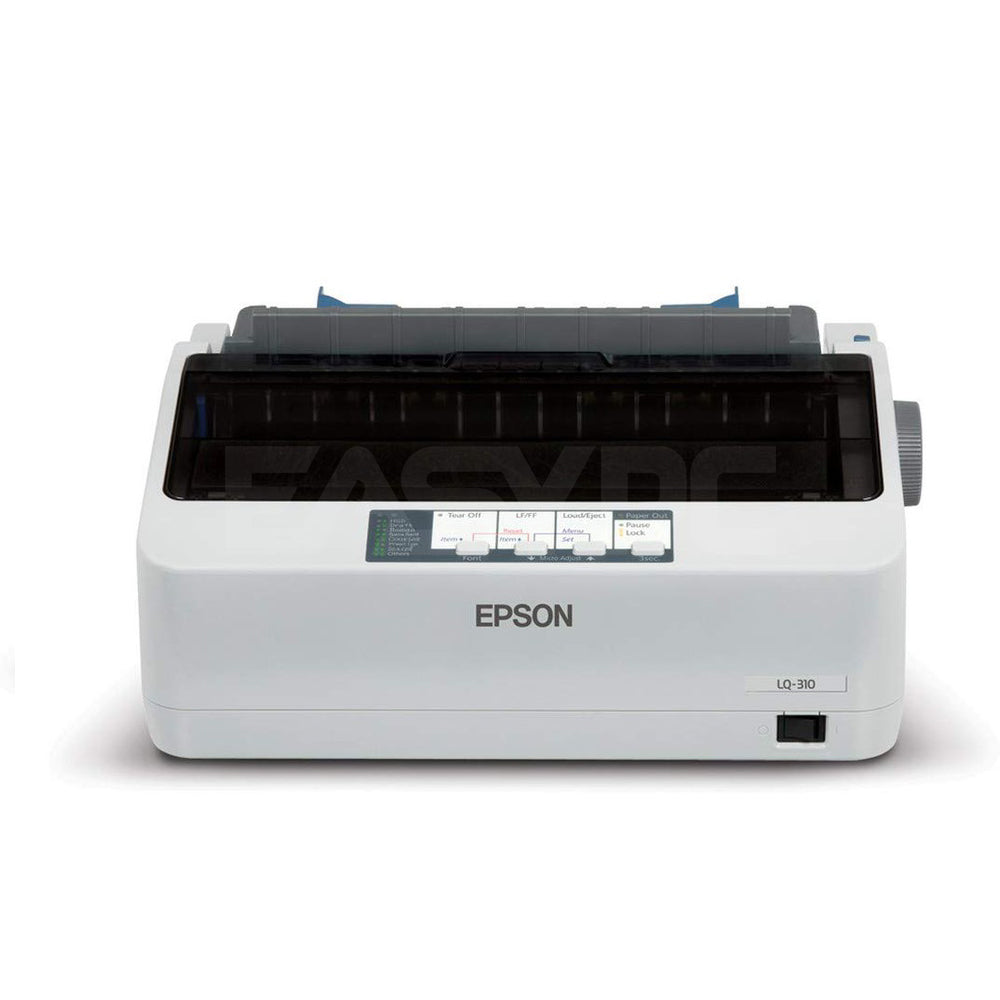

Epson LQ310 Dot Matrix Printer

Description

Epson LQ310 Dot Matrix Printer

Product Specifications

• MODEL NUMBER LQ-310
• Printing Technology
• Print Method Impact dot matrix
• Number of Pins in Head 24 pins
• Print Direction Bi-direction with logic seeking
• Control Code ESC/P2 and IBM PPDS emulation
• Print Speed
• High Speed Draft10/12 cpi 347 / 416 cps
• Draft10/12/15 cpi 260 / 312 / 390 cps
• Draft Condensed17/20 cpi 222 / 260 cps
• LQ10/12/15 cpi 86 / 103 / 129 cps
• LQ Condensed17/20 cpi 147 / 172 cps
• Print Characteristics
• Character Sets Italic table, PC437 (US Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC861 (Icelandic), PC863 (Canadian-French), PC865 (Nordic), Abicomp, BRASCII, Roman 8, ISO Latin 1, PC 858, ISO 8859-15
• Bitmap Fonts Epson Draft: 10, 12, 15 cpi; Epson Roman & San Serif: 10, 12, 15 cpi, Proportional; Epson Courier: 10, 12, 15 cpi; Epson Prestige: 10, 12 cpi; Epson Script, OCR-B, Orator & Orator-S: 10cpi; Epson Script C: Proporational
• Barcode Fonts EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, Postnet
• Printable Columns
• Pitch10/12/15/17/20 cpi 80 / 96 / 120 / 137 / 160 cpl
• Paper Handling
• Paper Path
• Tractor
• Rear in, Top out
• Manual Insertion
• Rear in, Top out
• Paper Size LengthWidthThickness
• Cut Sheet (Single Sheet)
• 100 – 364mm
• (3.9 – 14.3″)100 – 257mm
• (3.9 – 10.1″)0.065 – 0.14mm
• (0.0025 – 0.0055″)
• Cut Sheet (Multi Part)
• 100 – 364mm
• (3.9 – 14.3″)100 – 257mm
• (3.9 – 10.1″)0.12 – 0.32mm
• (0.0047 – 0.0126″)
• Envelope (No.6)
• 92mm
• (3.6″)165mm
• (6.5″)0.16 – 0.52mm
• (0.0063 – 0.0205″)
• Envelope (No.10)
• 105mm
• (4.1″)241mm
• (9.5″)0.16 – 0.52mm
• (0.0063 – 0.0205″)
• Continuous Paper (Single Sheet an Multi part)
• 6 – 558.8mm
• (4.0 – 22.0″)101.6 – 254.0mm
• (4.0 – 10.0″)0.065 – 0.32mm
• (0.0025 – 0.0126″)
• Roll Paper
• NA216mm
• (8.5″)0.07 – 0.09mm
• (0.0028 – 0.0035″)
• Paper Feeding
• Standard
• Friction, Push Tractor
• Optional
• Roll Paper Holder
• Copies Original + 3 copies
• Line Spacing 23mm (1/6″) or programmable in increments of 0.118mm (1/216″)
• Input Data Buffer 128KB
• Interface
• Standard Bi-directional parallel interface (IEEE-1284 nibble mode supported)
• USB 2.0 Full-Speed
• Serial
• Ribbon Cartridge
• Standard Fabric Ribbon Cartridge (Black)
• Ribbon Life
• 2.5 million characters (Draft 10cpi, 48 dots/character)
• Acoustic Noise 53dB(A) (ISO 7779 pattern)
• Reliability
• Mean Print Volume Between Failure (MVBF) 20 million lines (Except print head)
• Mean Time Between Failure (MTBF) 10,000 POH (25% Duty)
• Print Head Life 400 million strokes/wire
• Control Panel 4 switches and 5 LEDs
• Environmental Conditions (Operating)
• Temperature 5 ~ 35°C
• Humidty 10 ~ 80% RH
• Electrical Specification
• Rated Voltage AC 120V / AC 220 – 240V
• Rated Frequency 50Hz – 60Hz
• Power Consumption
• Operating
• 22W (ISO/IEC 10561 Letter pattern),(ENERGY STAR compliant)
• Sleep Mode
• 1.0W (120V) / 1.3W (230V)
• Auto Off Mode
• 0.5W
• Power Off
• 0W
• Printer Driver / Utility
• Operating System Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
• Utility
• Epson Status Monitor 3
• Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
• Epson Printer Setting
• Microsoft® Windows® 2000 / XP / 7, Microsoft® Windows Vista®
