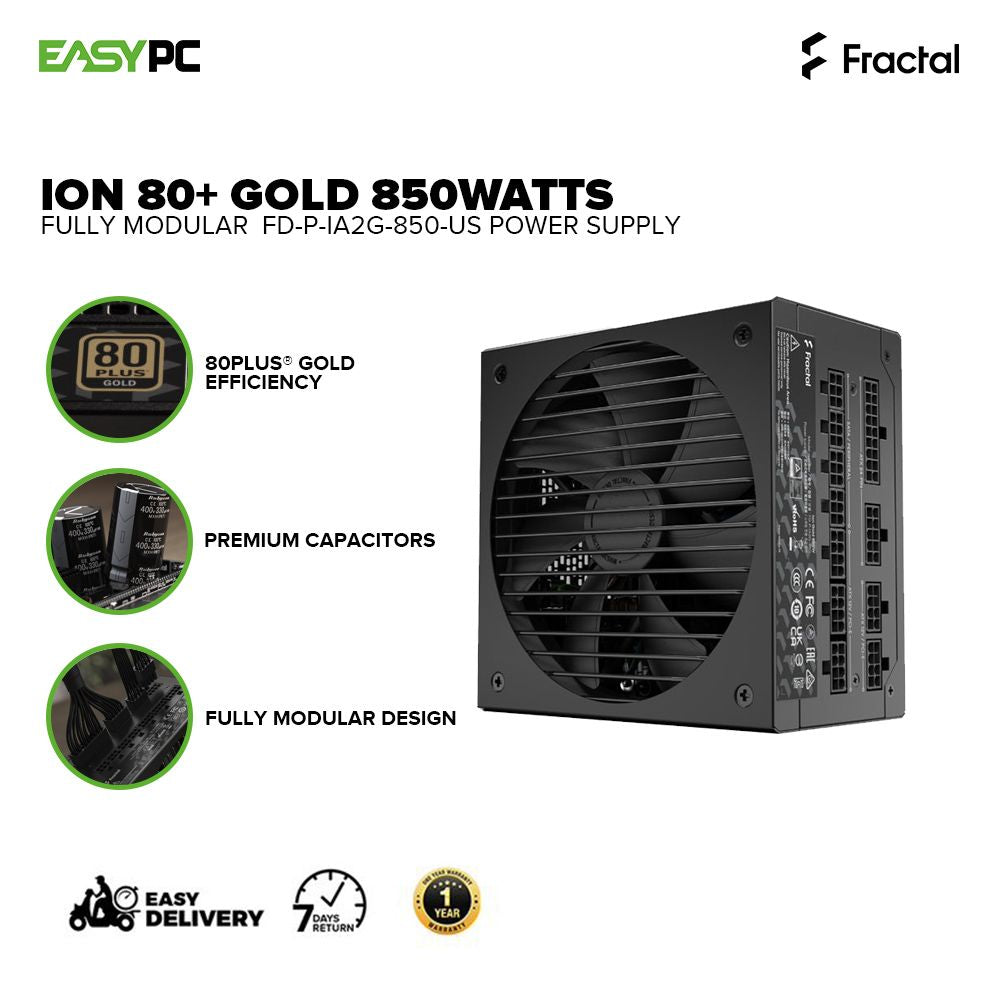

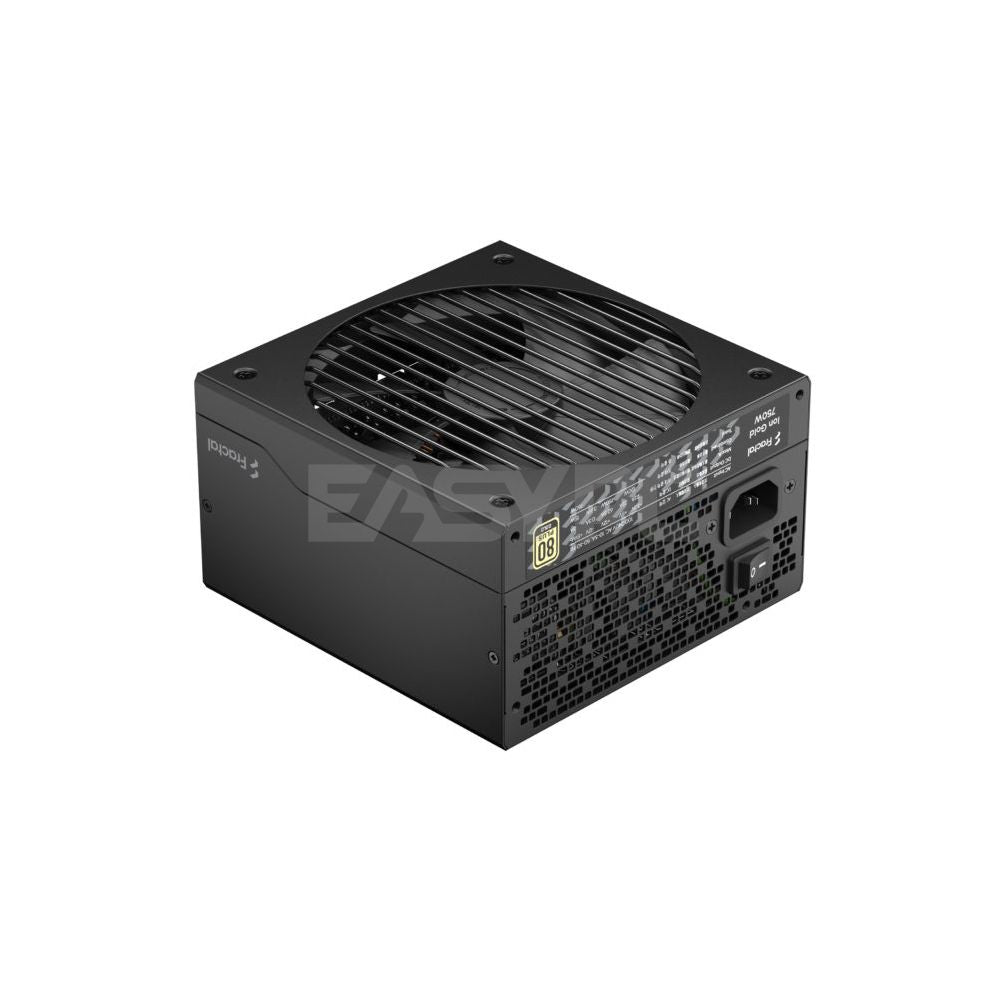

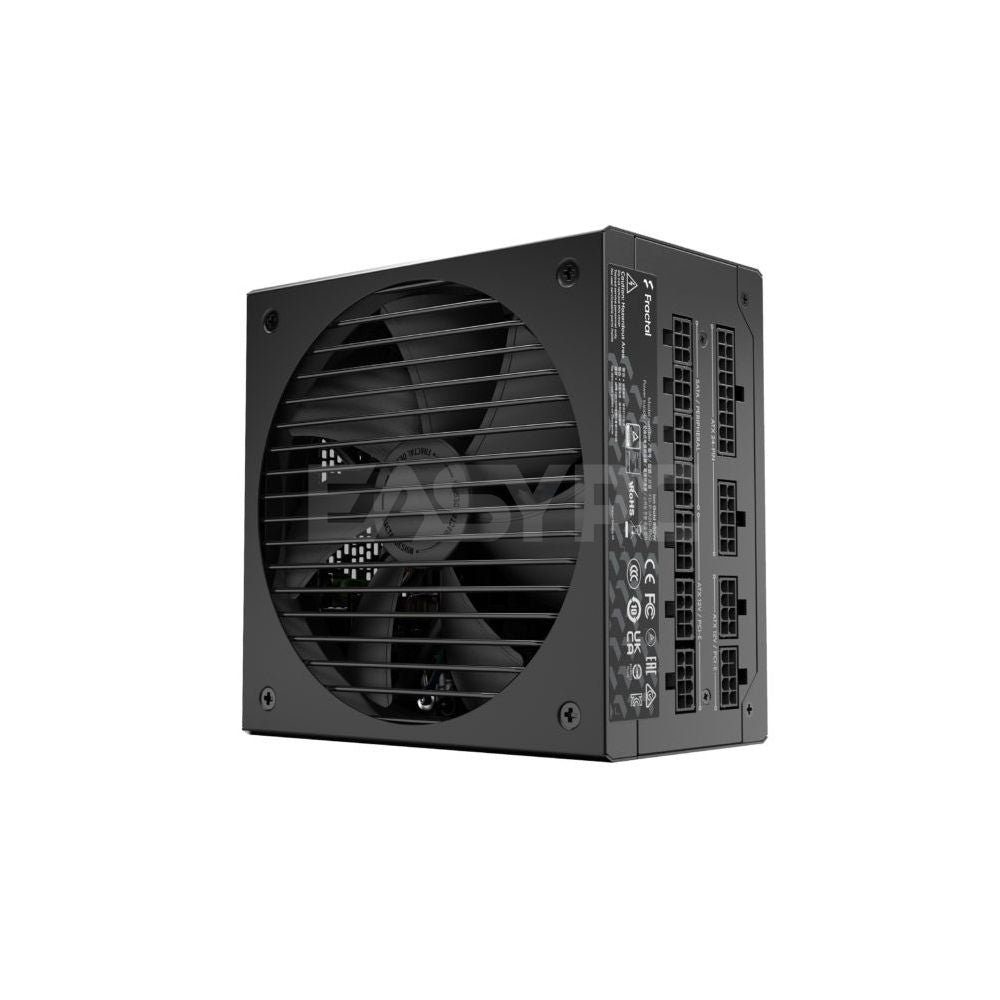

Fractal Design ION 80+ Gold 850, 750 and 650w Fully Modular for reduced clutter & maximum ease of installation Premium Capacitor Power Supply 4JTP

Description

Fractal Design ION 80+ Gold 850, 750 and 650w Fully Modular for reduced clutter & maximum ease of installation Premium Capacitor Power Supply 4JTP

Product Specifications

• Brand: Fractal Design
• Series: Ion Gold
• Model: FD-P-IA2G-850-US, FD-P-IA2G-750-US and FD-P-IA2G-650-US
• Total Power: 850W/ 750W/650W
• 80PLUS® certification: Gold
• Modular cables: Fully modular
• Fan type: 140 mm LLS bearing Fractal Design Dynamic series fan
• Maximum operating temperature (full load): 40°C, 50°C at 80% load
• Semi-passive operation: No
• Capacitors: Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors
• Life expectancy:100,000 hours
• PSU specification compliance: ATX12V 2.52; EPS12V 2.92
• PSU color: Black
• Cable type: Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires
• Input voltage: 100-240V AC
• Input frequency: 50-60 Hz
• Input current: 10A/5A
• Protection features: Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection
• Standby efficiency: ErP 2013 (<0.45W @ 230 VAC, 45mA load on +5Vsb)
• Sleep state compliance: C6/C7 compatible
• ATX 24-pin: 1
• EPS/ATX12V: 2 (850W and 750W)
• EPS/ATX12V: 1 (650W)
• PCIe: 6 (850W)
• PCIe: 4 (750W and 650W)
• SATA: 8 (850W and 750W)
• SATA: 6 (650W)
• Peripheral: 3
• ATX 24-pin: 500
• ATX 12V 4+4 pin: 600
• EPS12V 8-pin: 600 (850W and 750W)
• EPS12V 8-pin: N/A (650W)
• PCIe 6+2 pin: 550+150v
• SATA: 500+150+150+150
• Peripheral: 500+150+150
• DC Output
• 3V: 22A (850W and 750W)
• 3V: 20A (650W)
• 5V: 22A (850W and 750W)
• 5V: 20A (650W)
• 3V and 5V combined: 120W (850W and 750W)
• 3V and 5V combined: 110W (650W)
• 12V: 70.8A (850W)
• 12V: 62.5A (750W)
• 12V: 54.1A (650W)
• -12V: 0.3A
• +5Vsb: 3A
• Overview:
• The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.
• Features:
• 80PLUS® Gold Efficiency rating for reduced noise and energy consumption
• Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
• Fully modular design for reduced clutter and maximum ease of installation
• 80 PLUS® Gold certified
• High-efficiency performance wastes less energy and reduces heat generation
• More precise electrical output and full compatibility with modern components through DC-DC design
• Quality components consistently deliver tight voltage regulation with low ripple and noise
• Fully modular design
• Reduced clutter results in a clean and simple installation
• Compact 150 mm depth allows for installation in compact cases
• Provides additional cable management room in larger cases
• Large low-speed fan
• Ion Gold comes equipped with a large temperature-controlled Fractal Design Dynamic 140 mm fan, custom-tailored for power supply use with an exceptionally low minimum speed
