Fractal Design Meshify S2 Black-Dark/Light Tint and White-Light Tint, ATX Modular High-Airflow Tempered Glass Window Mid Tower Computer Case 4JTP

Description

Fractal Design Meshify S2 Black-Dark/Light Tint and White-Light Tint, ATX Modular High-Airflow Tempered Glass Window Mid Tower Computer Case 4JTP

Product Specifications

• Brand: Fractal
• Model: Meshify S2
• Color and Part No:
• Black – Dark Tint: FD-CA-MESH-S2-BKO-TGD

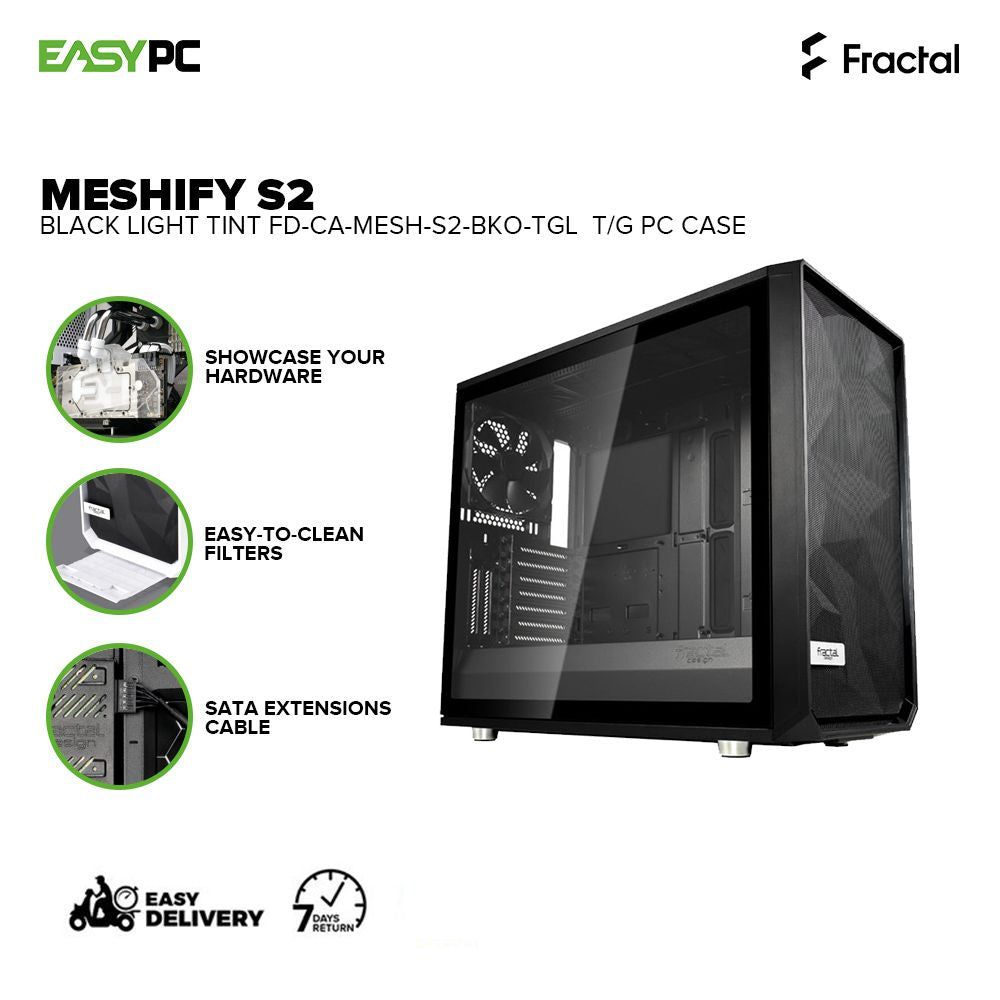

• Black – Light Tint: FD-CA-MESH-S2-BKO-TGL

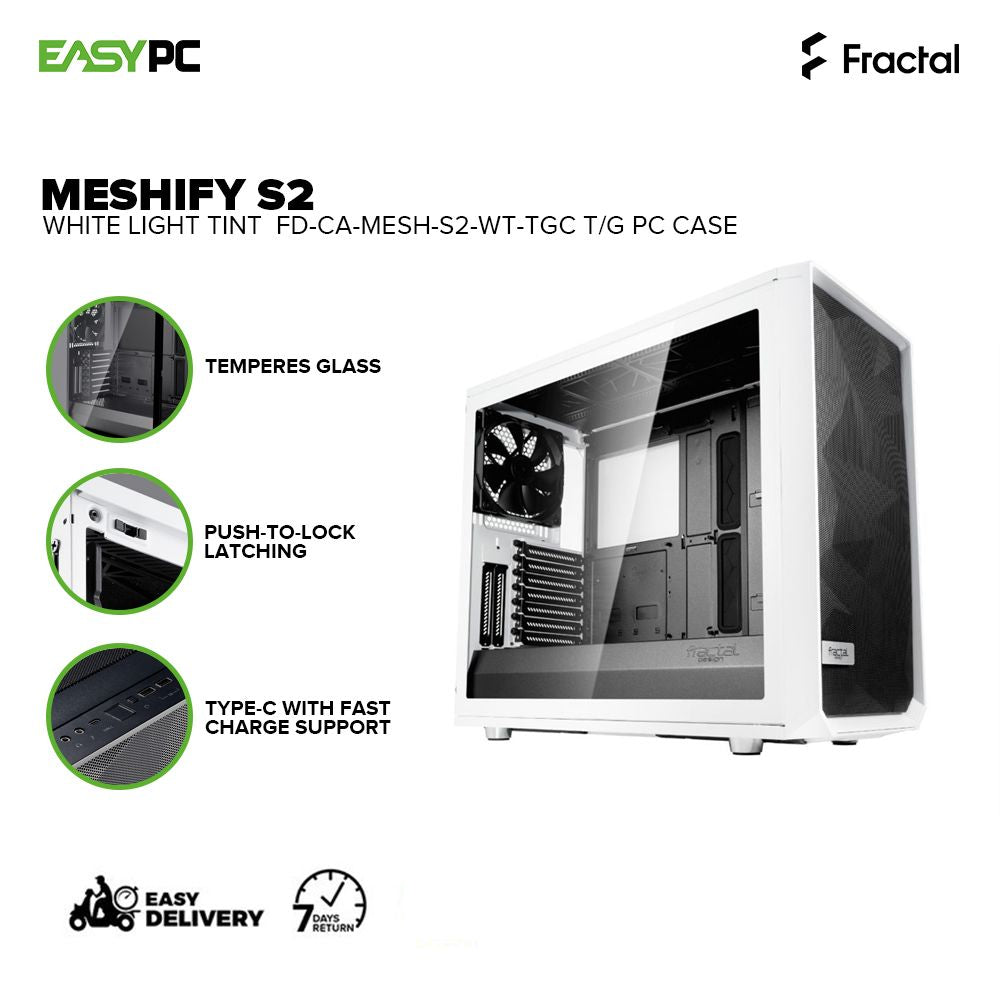

• White – Light Tint: FD-CA-MESH-S2-WT-TGC
• 5″/2.5″ Universal drive brackets: 3
• Dedicated 2.5″ drive brackets: 2 included, 4 positions total
• Expansion slots: 7 + 2 vertical
• Front ports: 1x USB 3.1 Gen 2 Type-C, 2 x USB 3.0, Audio I/O
• Total fan mounts: 9
• Front fan: 3x 120/140 mm (2 x Dynamic X2 GP-14 included)
• Top fan: 3x 120/140 mm or 1x 180 mm with 165 mm hole spacing
• Rear fan: 1x 120/140 mm (1 x Dynamic X2 GP-14 included)
• Bottom fan: 2x 120/140 mm
• Dust filters: Bottom fan + PSU, Front fans, Top panel
• Cable routing grommets: Yes
• Fixed velcro straps: Yes
• Tool-less push-to-lock: Both side panels
• Captive thumbscrews: HDD brackets, SSD brackets
• Left side panel: Light tint tempered glass
• Right side panel: Steel
• Compatibility:
• Power supply type: ATX
• Motherboard compatibility: EATX (up to 285 mm wide), ATX, mATX, ITX
• Front radiator: 120/240/360 mm, 140/280 mm
• Top radiator: 120/240/360 mm, 140/280/420 mm (max 35 mm motherboard component height)
• Rear radiator: 120 mm
• Bottom radiator: 120/240 mm, 140/280 mm
• PSU max length: 300 mm
• GPU max length: 440 mm with front fan mounted
• CPU cooler max height: 185 mm
• Cable routing space: 23 mm
• Vertical GPU Support (with Flex VRC-25): 31mm total clearance, standard 2-slot GPU (<38mm thickness) recommended for optimum cooling
• Overview:
• In a unique instance of refinement eliminating constraint, the Meshify S2’s modular open layout is all but an end to hardware restrictions.
• Meshify S2 boasts immense cooling capacity with three Dynamic X2 fans, nine total fan positions, 420/360/280 mm radiator mounts, built-in pump and reservoir support, and an innovative removable top bracket. Other new additions include USB Type-C, a versatile PSU shroud, Flex-VRC Vertical GPU Riser support, and bolt-free tempered glass.
• Features:
• Seamless, bolt-free tempered glass: Show off your clean, un-cluttered build in style
• Push-to-lock latching: Push-to-lock latching on both side panels for easy access
• Type-C with fast charge support: USB 3.1 Gen 2 Type-C with fast charge support and speeds up to 10Gbps
• Extensive water-cooling support
• Built for advanced liquid cooling with adjustable reservoir brackets, pre-drilled pump mounts, and an innovative removable top bracket with dedicated fill port
• Support for radiators up to 420 mm in the top, 360 mm in front, and 280 mm in the base
• Vertical 2.5 slot GPU support using the Flex VRC-25 vertical PCIe riser (sold separately)
• A multitude of mounting options
• Full-length ventilated PSU shroud with removable front cover and alternate SSD mounts
• Concealed drive mounts for two SSDs and three HDDs with vibration dampened enclosures
• High airflow and peak performance
• Nine fan positions with clear airflow paths for massive cooling capacity
• Three Dynamic X2 fans pre-installed as dual intakes and rear exhaust for balanced airflow
• Nexus+ Smart Hub allows motherboard control of up to three PWM devices and six case fans
• Modular high-airflow open layout design
• Stealth inspired angular mesh ventilation
• Showcase your hardware
• Vertical 2.5 slot GPU support using the Flex VRC-25 vertical PCIe riser (sold separately)
• Easy-to-clean filters
• Easy to clean front, top, and base filters with full PSU coverage and convenient front access
• SATA Extensions cable
• Easily connect your SATA storage devices to expand your build
