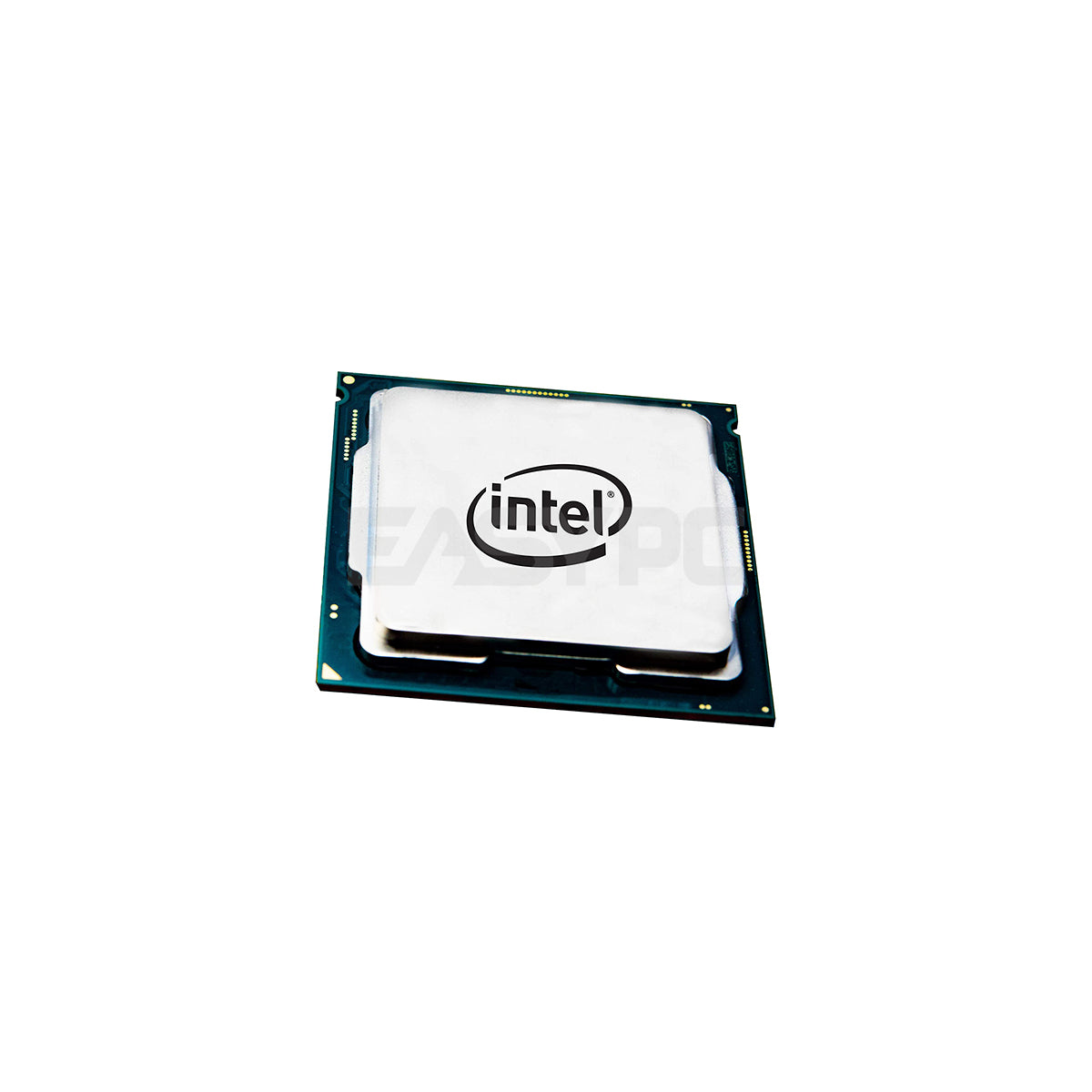

Intel Core i5-9400 Coffee Lake Socket 1151 2.9Ghz 9m Processor TTP

Description

Intel Core i5-9400 Coffee Lake Socket 1151 2.9Ghz 9m Processor TTP

Product Description

The Intel Core i5-9400 Coffee Lake CPU features 6 cores, 6 threads, and a base clock of 2.9GHz, reaching up to 4.1GHz with Turbo Boost. It supports Socket 1151, has a 9MB cache, and a TDP of 65W. Ideal for gaming and productivity with integrated Intel UHD Graphics 630.

Product Specifications

• Product Collection: 9th Generation Intel® Core™ i5 Processors
• Code Name: Products formerly Coffee Lake
• Vertical Segment: Desktop
• Processor Number: i5-9400
• Status: Launched
• Launch Date: Q1’19
• Lithography: 14 nm
• Use Conditions: PC/Client/Tablet
• CPU Specifications
• # of Cores: 6
• # of Threads: 6
• Processor Base Frequency: 2.90 GHz
• Max Turbo Frequency: 4.10 GHz
• Cache: 9 MB Intel® Smart Cache
• Bus Speed: 8 GT/s
• Intel® Turbo Boost Technology 2.0 Frequency‡: 4.10 GHz
• TDP: 65 W
• Max Memory Size (dependent on memory type): 128 GB
• Memory Types: DDR4-2666
• Max # of Memory Channels: 2
• Max Memory Bandwidth: 41.6 GB/s
• ECC Memory Supported ‡: No
• Processor Graphics ‡: Intel® UHD Graphics 630
• Graphics Base Frequency: 350 MHz
• Graphics Max Dynamic Frequency: 1.05 GHz
• Graphics Video Max Memory: 64 GB
• 4K Support: Yes, at 60Hz
• Max Resolution (HDMI)‡: 4096 x 2304@24Hz
• Max Resolution (DP)‡: 4096 x 2304@60Hz
• Max Resolution (eDP – Integrated Flat Panel)‡4096 x 2304@60Hz
• DirectX* Support: 12
• OpenGL* Support: 4.5
• Intel® Quick Sync Video: Yes
• Intel® InTru™ 3D Technology: Yes
• Intel® Clear Video HD Technology: Yes
• Intel® Clear Video Technology: Yes
• # of Displays Supported ‡: 3
• Device ID: 0X3E98/x92
• Scalability: 1S Only
• PCI Express Revision: 3.0
• PCI Express Configurations ‡: Up to 1×16, 2×8, 1×8+2×4
• Max # of PCI Express Lanes: 16
• Sockets Supported: FCLGA1151
• Max CPU Configuration: 1
• Thermal Solution Specification: PCG 2015C (65W)
• TJUNCTION: 100°C
• Package Size: 37.5mm x 37.5mm
