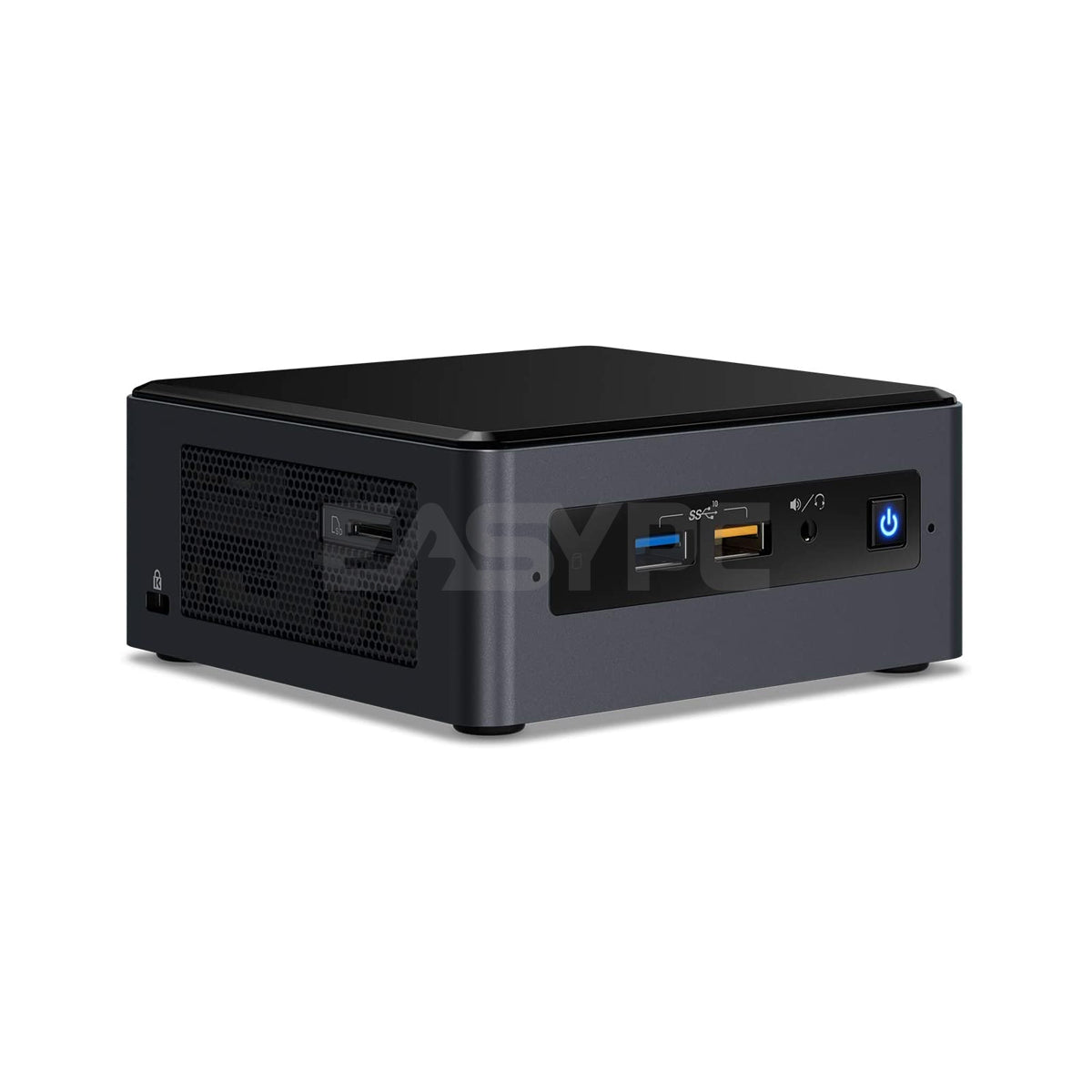

Intel NUC Kit BOXNUC8i7BEH1 Intel Core i7 8th Gen MiniPC

Description

Essentials

Product Collection Intel® NUC Kit with 8th Generation Intel® Core™ Processors

Code Name Products formerly BEAN CANYON

Status Launched

Launch Date Q3’18

Supported Operating Systems Windows 10, 64-bit*

Board Number NUC8BEB

Board Form Factor UCFF (4″ x 4″)

Socket Soldered-down BGA

Internal Drive Form Factor M.2 and 2.5″ Drive

# of Internal Drives Supported 2

Lithography 14 nm

TDP 28 W

DC Input Voltage Supported 12-19 VDC

Processor Included Intel® Core™ i7-8559U Processor (8M Cache, up to 4.50 GHz)

Intel® vPro™ Platform Eligibility ‡ No

# of Cores 4

# of Threads 8

Processor Base Frequency 2.70 GHz

Max Turbo Frequency 4.50 GHz

Warranty Period 3 yrs

Recommended Customer Price$538.20 – $540.50

Supplemental Information

Embedded Options Available No

Datasheet View now

Description Other features: Includes Thunderbolt 3 (40Gbps) USB 3.1 Gen 2 (10Gbps) and DP 1.2 via USB-C; also includes microSDXC card slot, dual microphones

Product Brief View now

Memory & Storage

Max Memory Size (dependent on memory type) 32 GB

Memory Types DDR4-2400 1.2V SO-DIMM

Max # of Memory Channels 2

Max Memory Bandwidth 38.4 GB/s

Max # of DIMMs 2

ECC Memory Supported ‡ No

Processor Graphics

Processor Graphics ‡ Intel® Iris® Plus Graphics 655

Integrated Graphics ‡ Yes

Graphics Output HDMI 2.0a; USB-C (DP1.2)

# of Displays Supported ‡ 3

Expansion Options

PCI Express Revision Gen3

PCI Express Configurations ‡ M.2 slot with PCIe X4 lanes

Removable Memory Card Slot microSDXC with UHS-I support

M.2 Card Slot (storage) 22×42/80

I/O Specifications

# of USB Ports 6

USB Configuration 2x front and 3x rear USB 3.1 Gen2; 2x USB 2.0 via internal headers

USB Revision 2.0, 3.1 Gen2

USB 2.0 Configuration (External + Internal) 0 + 2

USB 3.0 Configuration (External + Internal) 2B 2F + 0

Total # of SATA Ports 2

Max # of SATA 6.0 Gb/s Ports 2

RAID Configuration 2.5″ HDD/SSD + M.2 SATA SSD (RAID-0 RAID-1)

Audio (back channel + front channel) 7.1 digital (HDMI mDP); L+R mic (F)

Integrated LAN Intel® Ethernet Connection I219-V

Integrated Wireless‡ Intel® Wireless-AC 9560 + Bluetooth 5.0

Integrated Bluetooth Yes

Consumer Infrared Rx Sensor Yes

Additional Headers CEC, 2x USB2.0, FRONT_PANEL

# of Thunderbolt™ 3 Ports 1

Package Specifications

Chassis Dimensions 117 x 112 x 51mm

Advanced Technologies

Intel® Optane™ Memory Supported ‡ Yes

Intel® Virtualization Technology for Directed I/O (VT-d) ‡ Yes

Intel® vPro™ Platform Eligibility ‡ No

TPM No

Intel® HD Audio Technology Yes

Intel® Rapid Storage Technology Yes

Intel® Virtualization Technology (VT-x) ‡ Yes

Intel® Platform Trust Technology (Intel® PTT) Yes

Security & Reliability

Intel® AES New Instructions Yes
